Tail End Scrapers
  1-W-R Positioning
  V-Plough Positioning



1-W-R Positioning
This is a return scraper that can plough material off on either side left or right. A stabilizer bracket is added onto the unit for stability. The blade moves up and down in a vertical plane, making contact with the belt at a fixed angle. To change the angle of the blade, the arms are positioned on opposite sides. To install the unit no special tools are required and quick fixing brackets are supplied.

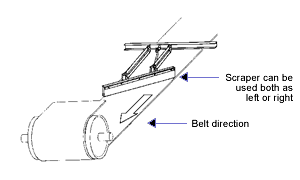

1-W-R Positioning   1-W-R Positioning
Back to top

V-Plough Positioning
The V-PLOUGH scraper is fitted on the return belt near the tail end pulley, to clear material that could fall from the top belt, thus preventing damage to both the belt and the tail pulley. The V shape ploughs material off on either side of the belt, and the swivel action of the fixing brackets and arms, allows the scraper to SELF-ADJUST its self. A safety roller is built into the scraper and prevents the point of the scraper from digging into the the conveyor belt. Installation of this scraper is very simple, whereby no bolt holes are required.

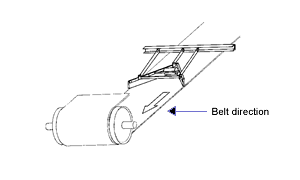

V-Plough Positioning   V-Plough Positioning
